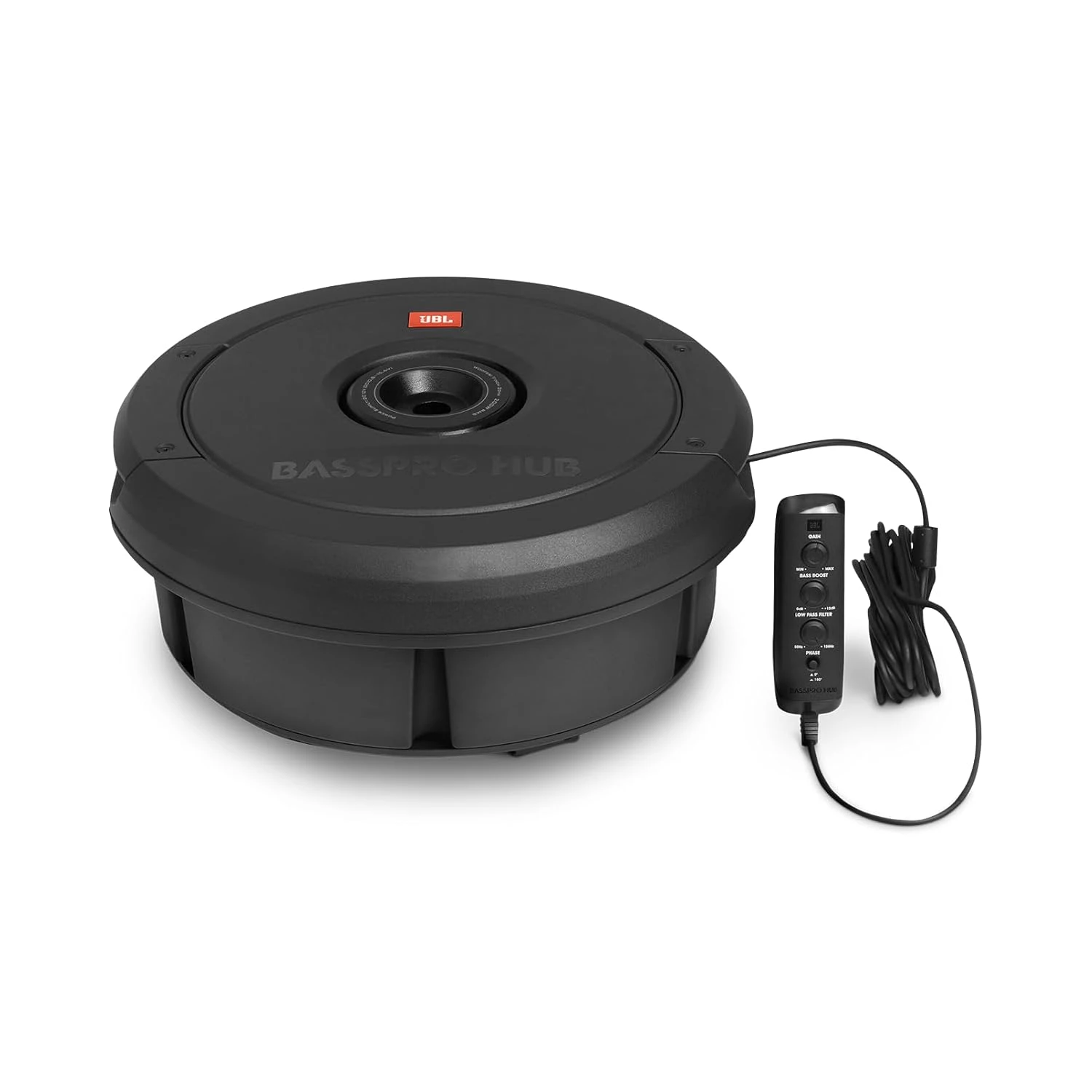

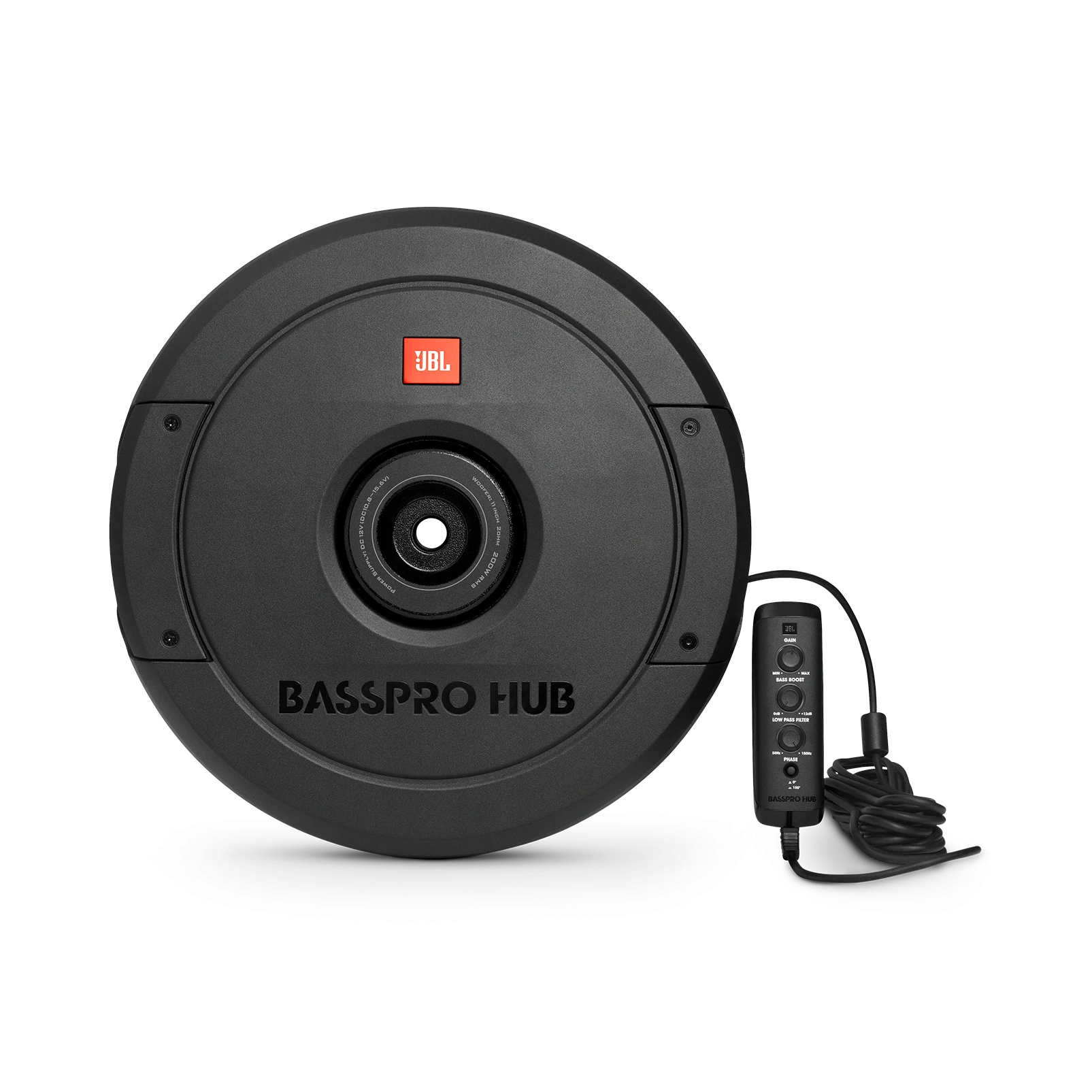

JBL BassPro Hub is an 11-inch powered subwoofer that mounts inside the
spare-tire hub to save cargo space while adding deep, controlled bass
with a built‑in 200W RMS Class‑D amplifier and wired remote control for
easy tuning on the go.
Key Features
-

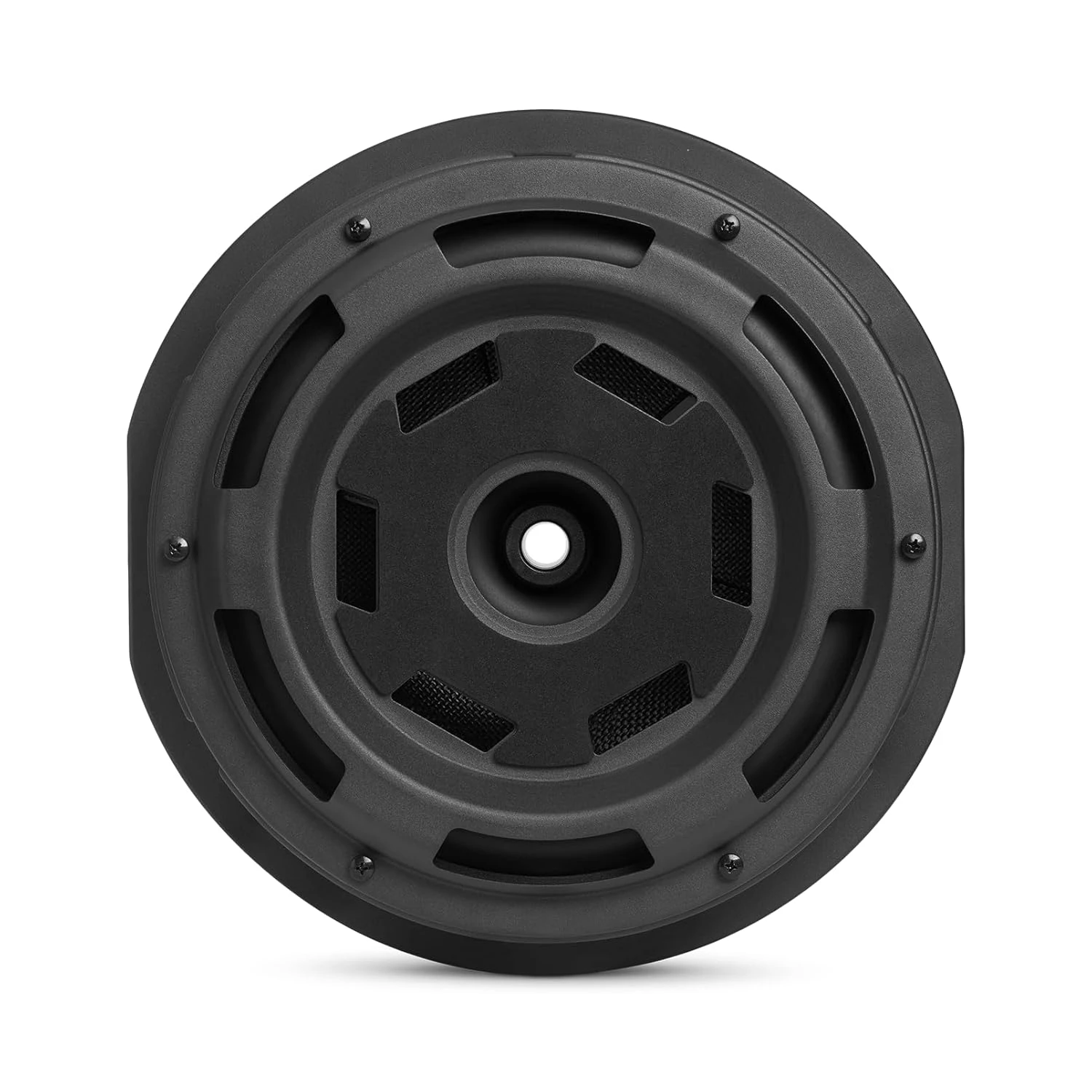

11-inch fiberglass cone woofer with rubber surround for tight, low‑distortion bass in a compact, sealed enclosure.
What’s in the Box
BassPro Hub subwoofer, mounting hardware, wiring harness, safety sheet,
quick start guide, and a wired remote controller with 5 m cable.
Core Specifications
-
Amplifier power: 200 W RMS at 2 ohms.
Why Buy from Autodime
-
Verified
fitment guidance for spare‑tire installations, including mount
depth/diameter checks and wiring adapters for OE systems.
Built‑in 200W RMS Class‑D amplifier optimized for the enclosure for cool running and efficient current draw.
Frequency
response 30–150 Hz with variable low‑pass crossover 50–150 Hz and 24
dB/octave slope for seamless blend with front speakers.

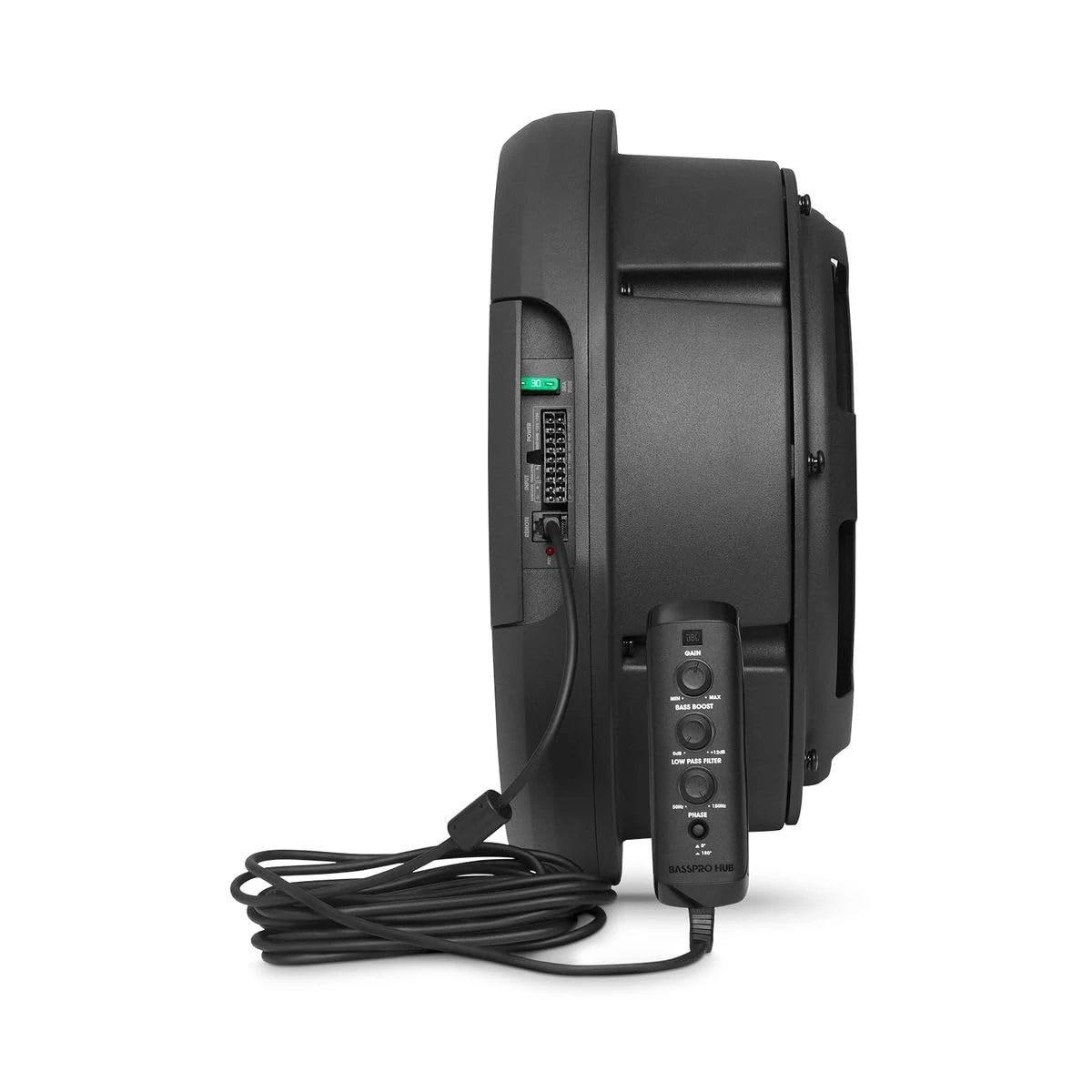

Bass EQ up to +12 dB at 50 Hz, phase switch 0°/180°, and gain control via the included wired remote for driver‑seat adjustments.
Line‑level
RCA and speaker‑level inputs allow integration with factory or
aftermarket head units; auto turn‑on supported on speaker inputs.

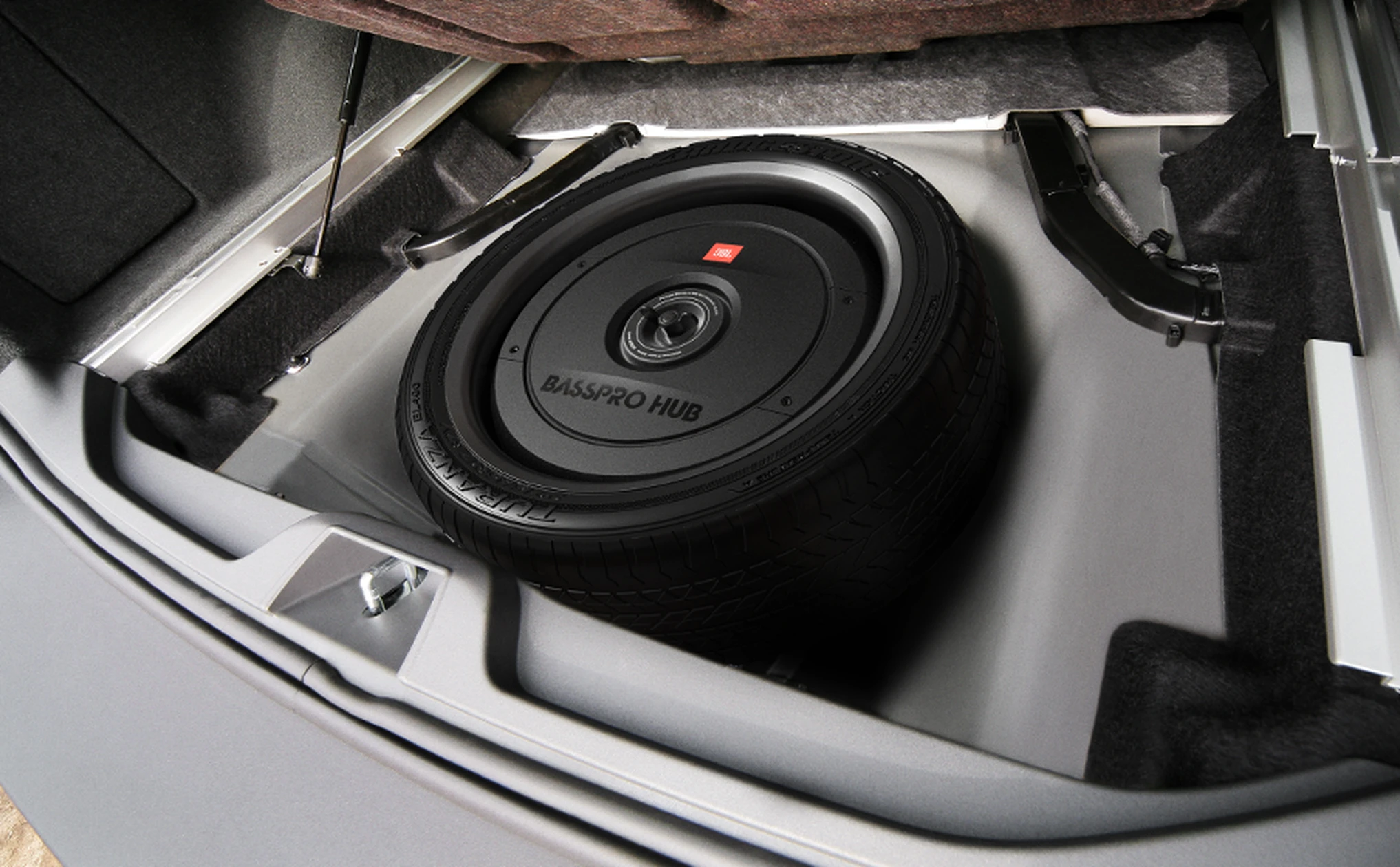

Spare‑tire mount design keeps the system hidden; requires removable interior spare with ≥15-inch opening and ~7.7-inch depth.
Protection circuits include over‑temperature and over‑current safeguards for reliable high‑volume performance.
Frequency response: 30–150 Hz.
Crossover: 50–150 Hz, 24 dB/octave.
Bass boost: 0–12 dB at 50 Hz.
Electrical: 30 A fuse, max current draw 30 A, quiescent <1.2 A.
Dimensions: approx. D360 × H165 mm; sub outer diameter 14.145" and total depth 6.410".
Optional professional installation with clean OEM‑style integration and tuning support for crossover, phase, and bass EQ.
Insured shipping, secure packaging, and after‑sales assistance for warranty and setup questions.
